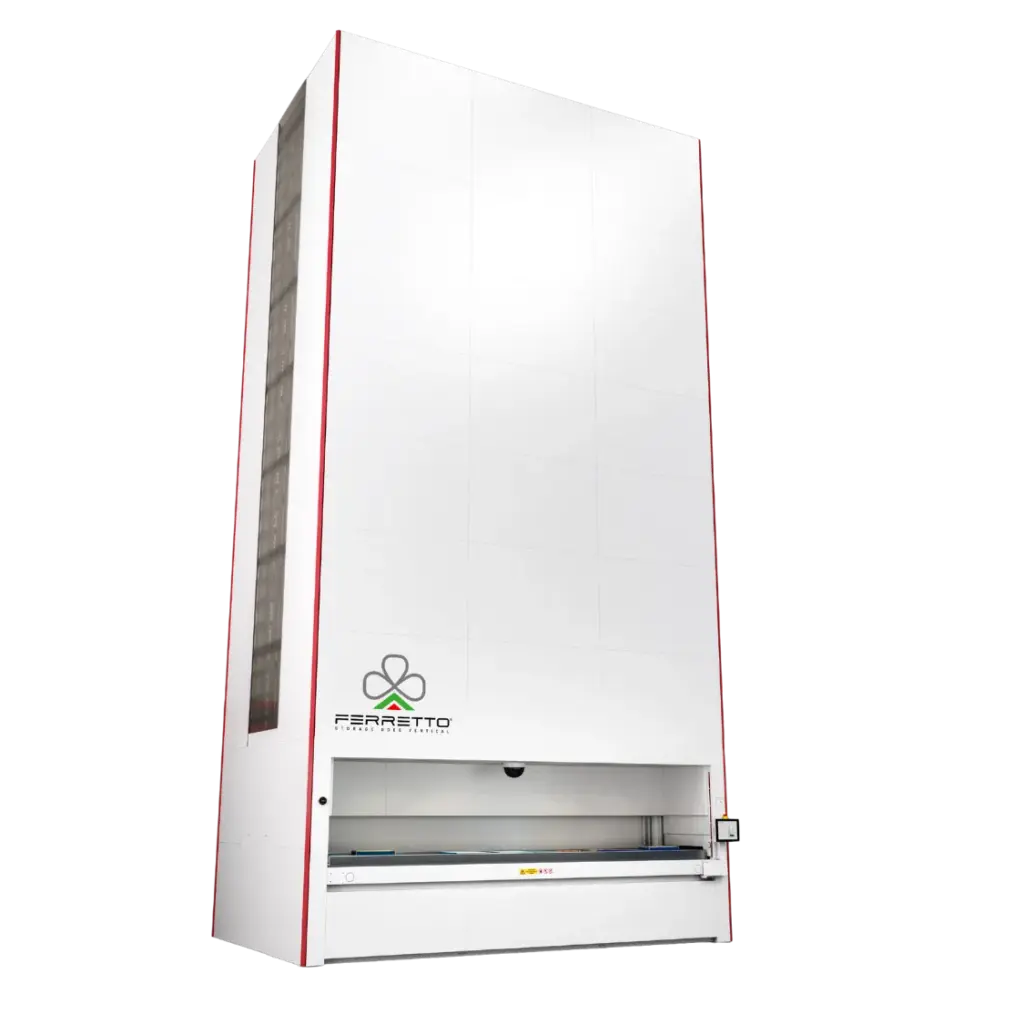

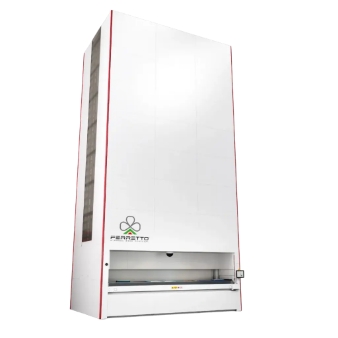

Vertimag
MAKE THE MOST OF YOUR SPACE
Vertimag is an automated vertical lift module (VLM) designed to maximize storage by using the full height of your facility. It delivers goods directly to the operator, reducing travel time, improving ergonomics, and boosting efficiency. From small parts to complex inventories, Vertimag adapts to your operations to help you work smarter every day.
15 models. 120 tray configurations. Fits your SKUs, your ceiling height, your throughputnot the other way around.

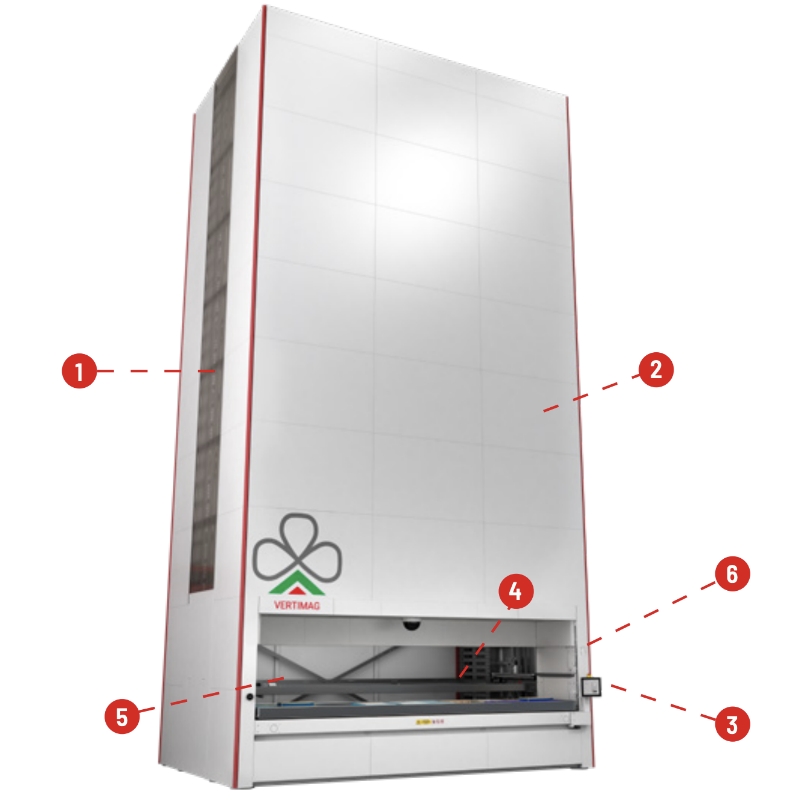

TECHNICAL DATA
- High-strength tubular structure
- High-durability pre-painted sheet paneling
- Touch Panel screen 12” with sockets for external devices and user-friendly graphics
- Different picking bays suitable for all needs
- Check for incoming goods height – Pitch 25mm
- Safety barriers for the operators
HEIGHT (m)
from 3,2 to 12 (every 200mm)
GROSS CAPACITY MAX (kg)
70.000
MATERIAL HEIGHT MAX (mm)
695
TRAY PAYLOAD FOR THE ENTIRE RANGE (kg)
300 – 550 – 800 – 990
TRAY SIDE HEIGHT (mm)
70 – 95 – 120 – 145 – 170
FLEXIBLE PITCH (mm)
25
PICKING BAYS
Internal Single Bay / Internal Double Bay / Ergo -Tech /
External Single Bay / External Double Bay / Extractable Bay
ACCESSORIES
Laser pointer
Alphanumeric LED bar
Barcode/QR Code reader
Badge/Eks reader
Sliding console
Shutter door
Label printer
Counting scale
Trolley for tray extraction
Tray equipment
Put & Go – Order preparation cart
DESIGNED FOR DEMANDING ENVIRONMENTS
Flexible picking bays for every need
Vertimag offers multiple picking bay configurations designed to adapt to your space, workflow, and material handling requirements.
Internal bays are ideal for ensuring safe and ergonomic working conditions, while double configurations can increase throughput and improve overall warehouse performance. The Ergo-Tech solution combines high performance with maximum flexibility.
External bays provide easy access for handling bulky or heavy materials using external equipment, ensuring safe and efficient operations. For maximum flexibility, the extractable bay allows operators to manually pull out trays and manage heavy items with complete control.
Each configuration is designed to optimize workflows, improve safety, and support your specific operational needs.
Warehouse Management System
The EjLog Warehouse Management System designed by Ferretto can be seamlessly integrated with the customer’s ERP.
Thanks to its intuitive graphic layout and user-friendly interface, EjLog is the ideal warehouse management system for managing all types of automatic storage solutions, traditional racking systems as well as the storage areas at ground level.
EjLog enables real-time warehouse management through a regular computer interface on PC or radio frequency terminals, in the case of traditional storage systems and storage areas at ground level, and at the same time allows remote monitoring and intervention.
Its “open” architecture facilitates dialogue with the company’s ERP, ensuring increased productivity and space optimization through correct data management.
VERTIMAG PLUS
The vertical warehouse is modular, versatile, and configurable.
Tell us how your facility operates today.
We will show you how switching to a Ferretto Vertimag vertical storage can dramatically reduce your floor footprint, cut retrieval times, and boost overall operational efficiency.
